Introduction
What Locospec specs are, why we need them, and how they shape the low-code engine.
“Specs are the new code. Write once, power everything.”
Welcome to Locospec Standard Specifications—the foundation of how we build, describe, and extend data-driven systems using nothing but JSON.
Locospec is a spec-first, low-code framework designed to make building internal tools, admin panels, and workflows as easy as writing configuration. But not just any config—typed, validated, reusable JSON specs that double as documentation and triple as API contracts.
🔍 What Is a Locospec?
At its core, a Locospec is a JSON document that tells the system:
- What data looks like (
model) - How it should be displayed (
view,entity) - How it can be mutated (
mutator,action) - How users can search, filter, and interact (
filters,scopes) - Who can see or do what (
permissions)
No more stitching logic across backend controllers and frontend UI. With Locospec, the spec is the single source of truth—one file, many powers.
🧠 Why Have a Spec Standard?
In a growing codebase, it’s easy for logic to scatter:
- Backend handles validation, but frontend repeats it
- DB knows relationships, but UI guesses it
- Mutations are manual, brittle, and hard to test
Locospec fixes this with a shared spec schema—standardized, engine-agnostic, and runtime-neutral. This schema powers everything from:
✅ CRUD APIs
✅ Tables & Forms
✅ Filter Builders
✅ Mutator State Machines
✅ Validation Rules
✅ Permission Checks
✅ Even AI-powered spec tooling

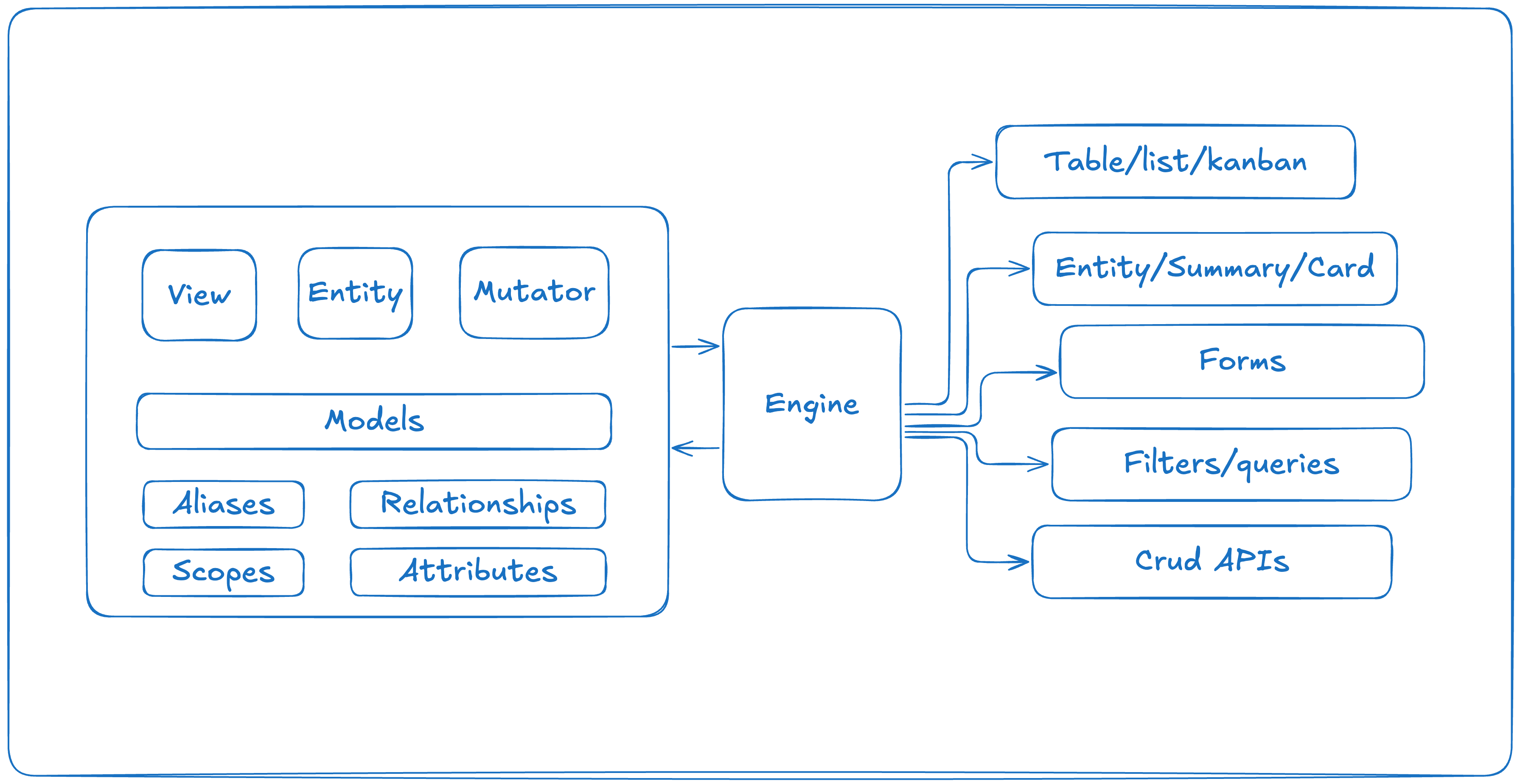

🧠 How Locospec Works
Locospec is built on a composable spec system. Developers define models, and layer on views, entities, and mutators. Everything is declared in JSON specs.
These specs are loaded and executed by the Engine, which powers:
- Fully searchable tables, lists, and kanbans
- Detail views like cards or summaries
- Forms with validations, state machines, and generators
- Deep filtering and cross-model queries
- Auto-generated CRUD APIs
You define the structure, the engine powers the experience.
🧱 What You’ll Learn in This Section
This section is your spec bible. You’ll find the complete JSON schema for each spec type and learn how to:
- Declare models and attributes
- Describe relationships and filters
- Create reusable lenses and forms
- Add validations, generators, and layout metadata
No implementation details. Just the contract between your mind and the machine.
🧩 Supported Spec Types
| Spec Type | Purpose |
|---|---|
model | Defines data structure, fields, and relationships |
view | Declares how to query and display collections of data |
entity | Structures how to show a single record (e.g., detail view, summary card) |
mutator | Describes form layouts and mutation input |
action | Direct DB operations like insert/update/delete |
filters | Declarative query logic with nested conditions |
scopes | Predefined filters for dynamic views (e.g. only_published) |
🚀 DX-First, Always
- Write once: A single spec can power backend APIs, frontend components, and dev tools.
- Type-safe: All specs follow JSON Schema v7, and you can validate them before shipping.
- Composable: Specs reference other specs. Build your system like LEGO bricks.
- Future-proof: Specs can be versioned, synced, and rolled back anytime.
Ready to spec your world?
Let’s start with the heart of everything: the Model Schema.
